Cat-Back Dual Extreme Exhaust System; Aluminized

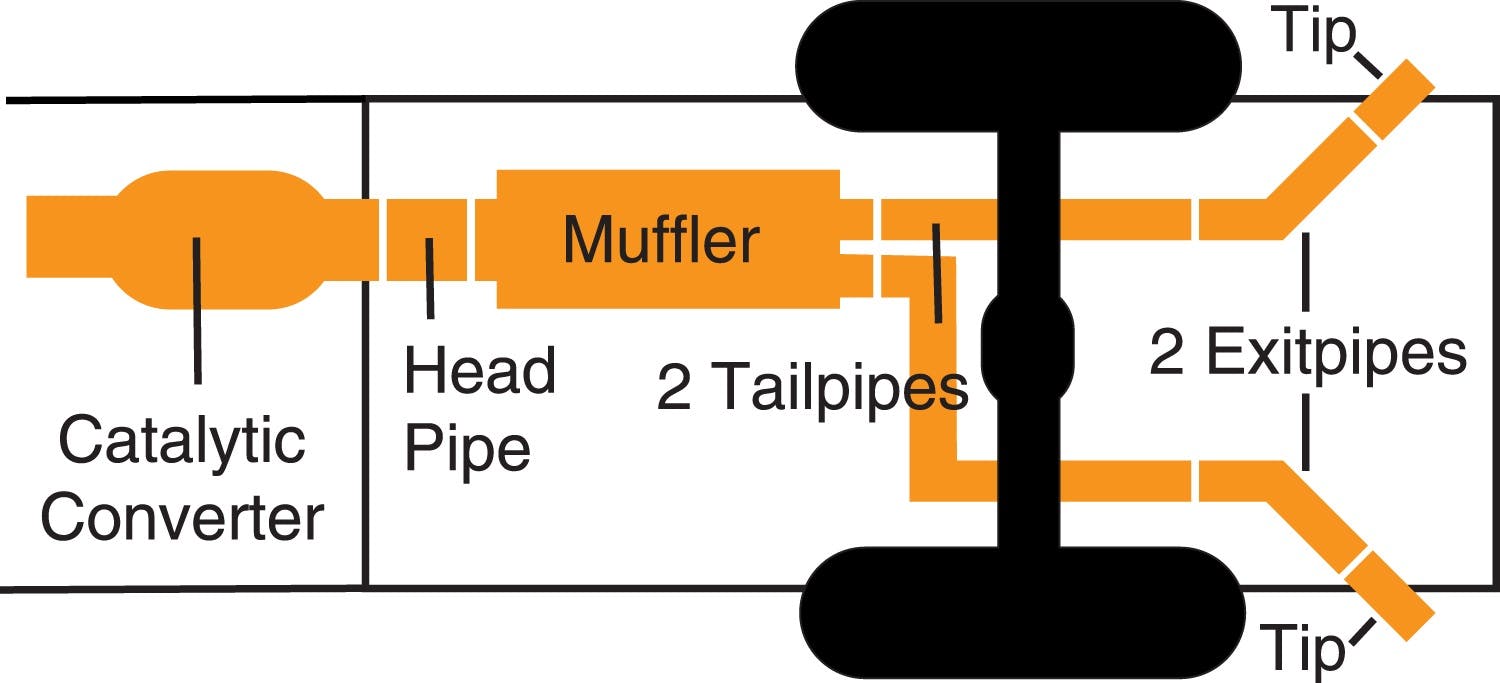

For the extremist who wants to take their truck to the next level, this dual bolt-on Cat back system is for you. This system exists behind the rear tires at an aggressive angle with a powerful exhaust tone. You will gain bold street looks with powerful dyno tuned and tested street performance gains. You can expect to experience gains on average of 15-20 horsepower. Gibson muffler provides a mean performance sound and complemented with polished Stainless Tip. Easy bolt-on installation. No welding required. Backed by a Lifetime Limited Warranty. If you want Extreme, this system is it.
- Aluminized Mandrel Bent Tubing
- Superflow™ CFT Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimal Interior Drone - Aggressive Sound
- Polished Stainless Slash-Cut Clamp On Tips
- Incl. All Hardware/Factory Style Hangers
- Hassle Free Bolt-On Installation
- Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 1998-2011 |
Ford Ranger |
| 2003-2004 |
Mazda B2300 |
| 1998-2000 |
Mazda B2500 |
| 1998-2007 |
Mazda B3000 |
| 1998-2009 |
Mazda B4000 |
| Attributes |
| Additional Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Dual |
| Exit Position |
Dual Split Rear Behind Rear Tires |
| Exit Position (F05) |
Exits Behind Each Rear Tire. |
| Exit Style |
Straight |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
1.750 in. |
| Inlet Inside Diameter (in.) |
1.75 |
| Inlet Size (in.) |
1.75 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminized |
| Muffler Body Length |
16.000 in. |
| Muffler Body Length (in.) |
16.000 |
| Muffler Dimension |
6 in. Round Body; 2.50 in. Center Inlet; 1.75in. Dual Outlet; L-16 in. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Dual |
| Outlet Outside Diameter |
1.750 in. |
| Outlet Outside Diameter (in.) |
1.75 |
| Outlet Size (in.) |
1.75 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
1.750 in. |
| Tip Description |
3in. Polished T304 Stainless , Round , Slash Cut Tip , Clamp on. |
| Tip Description _3_ 80_c _short description_ (F05) |
3in. Polished T304 Stainless; Round; Slash- Cut Tip; Clamp on. |
| Tip Diameter |
3.000 in. |
| Tip Logo |
None |
| Tip Size |
3 in. |
| Tip Specification |
Inlet 2.50 in. , Outlet 3 in. , L 8 in. |
| Tip Specifications (F05) |
Inlet 2.50 in.; Outlet 3 in.; L-8 in. |
| Tubing Diameter |
1.750 in., 1.750 in. |
| Vehicle Category |
Truck & Suv |
| GTIN |
00677418010206 |
